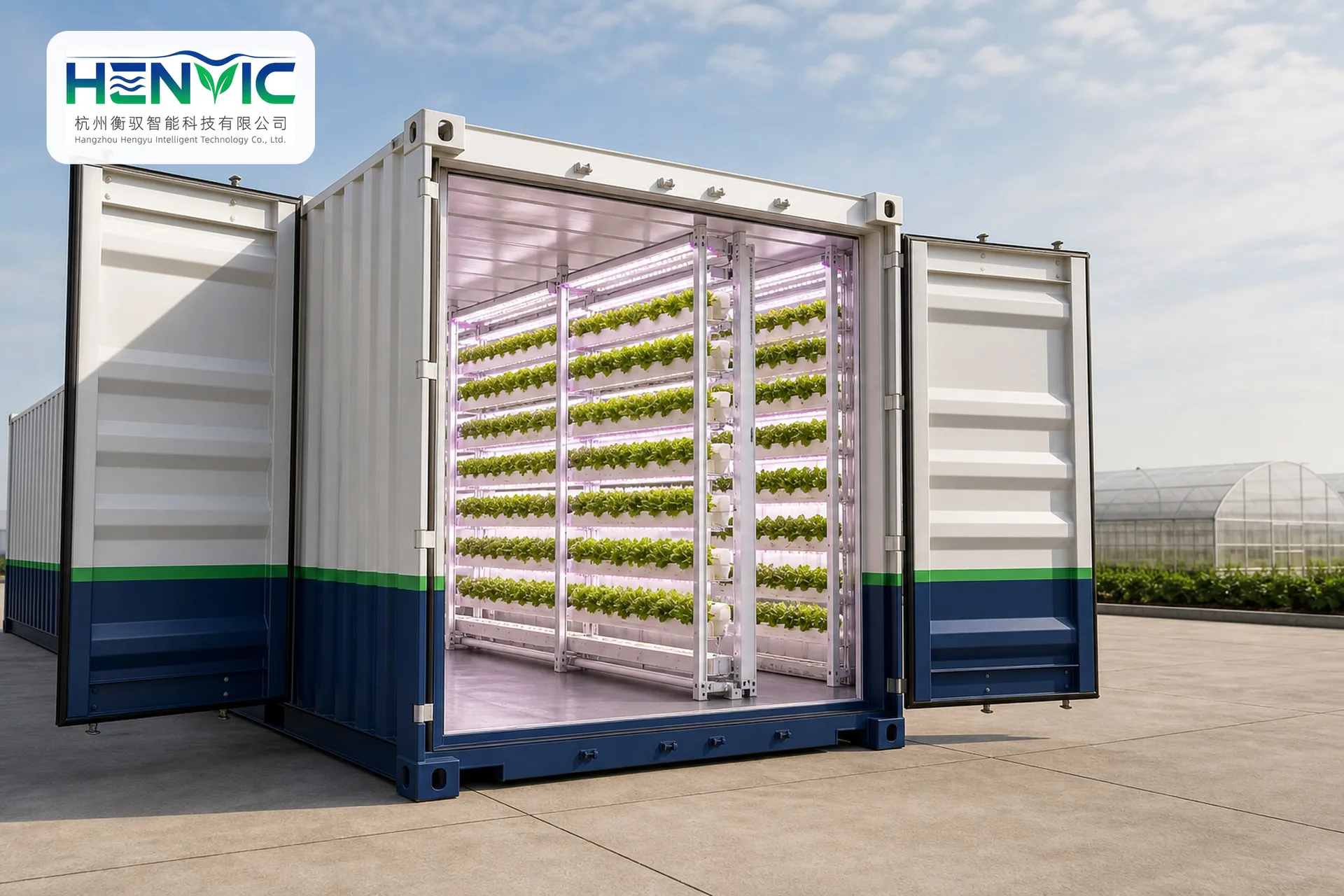

Spinach Vertical Hydroponic Container
Product illustration: images/vegetable/HVC-V04.jpg (Three-dimensional cultivation rack with spinach)
I. Product Overview
The spinach root system is particularly sensitive to dissolved oxygen levels and low temperatures. The HVC-V04 cultivar employs a combination of deep liquid flow and cyclic aeration techniques, complemented by a specialized low-temperature formulation, thereby balancing root system health and leaf quality to enable year-round clean production of spinach.
II. Core Competitive Advantages
● Root system aeration: Circulating aeration combined with water level monitoring helps reduce the risk of root rot.
● Low temperature and high humidity: stable operation within the 16–20 °C range; the blades are thick and exhibit a low astringent taste.

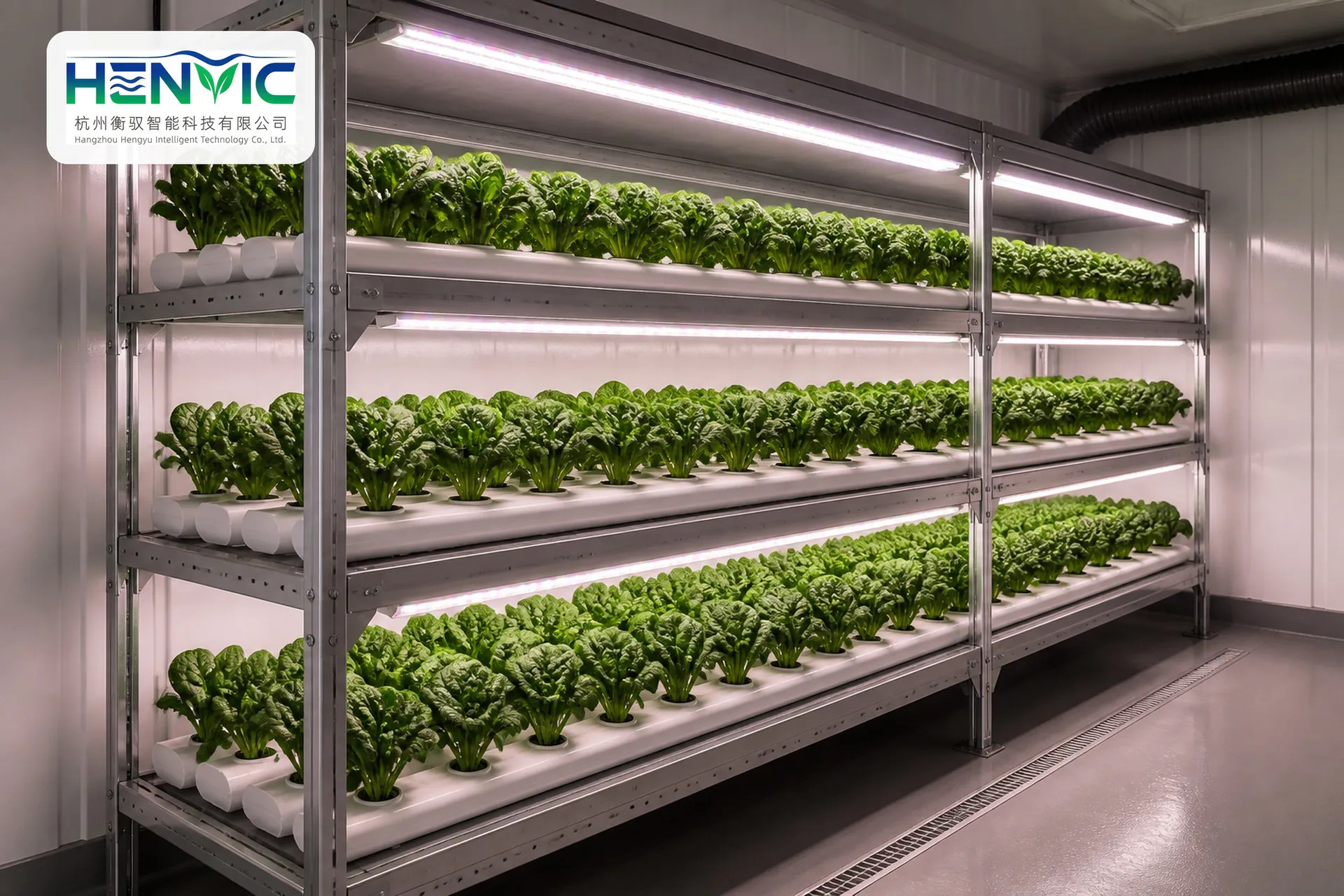

● Three-dimensional shelving: Multi-layer arrangement of deep liquid flow troughs ensures high space utilization.
● Clean harvesting: No soil washing required – directly enters the cleaned vegetable processing line.
III. Typical Technical Specifications
project | parameter |
outline dimension | 12000 × 2438 × 2896 mm (40 feet) |
Number of cultivation layers | 4–5 layer |
Effective planting area | 85–115 m² |
growth cycle | 30–40 days |
Temperature control range | 15–20 ℃（±1 ℃） |
relative humidity | 60%–75% RH |
beam | LED 200–350 μmol/(m²·s) |
EC / pH | 1.8–2.4 mS/cm ｜ 6.0–6.5 |
installed power | 12–16 kW |
source | 380 V / 50 Hz Three-phase |
IV. System Configuration
Deep Fluid Flow (DFT) cultivation tank; multi-layer support structure; nutrient solution circulation and aeration system; liquid level and dissolved oxygen monitoring system; automatic EC/pH-based fertilization system; full-spectrum LED lighting; constant-temperature fresh air handling unit; intelligent control cabinet.
V. Applicable Varieties
Various varieties of spinach, including large-leaf spinach, round-leaf spinach, and pointed-leaf spinach.
VI.适用场景
Pre-prepared vegetable processing facilities, urban leafy vegetable supply chain, and high-end catering ingredient production base.
VII. Delivery and Installation
Delivered as a complete unit; commissioning will be completed within 3–5 working days after on-site hoisting and power connection; product selection and nutrient solution management guidance will be provided.
VIII. After-Sales Service
12-month overall warranty; annual maintenance for dissolved oxygen meters and pump sets, formula upgrades, and remote support.
