Morel Mushroom Cultivation Container
• Programmable day/night temperature curves that reproduce the cold-shock window required for primordia induction

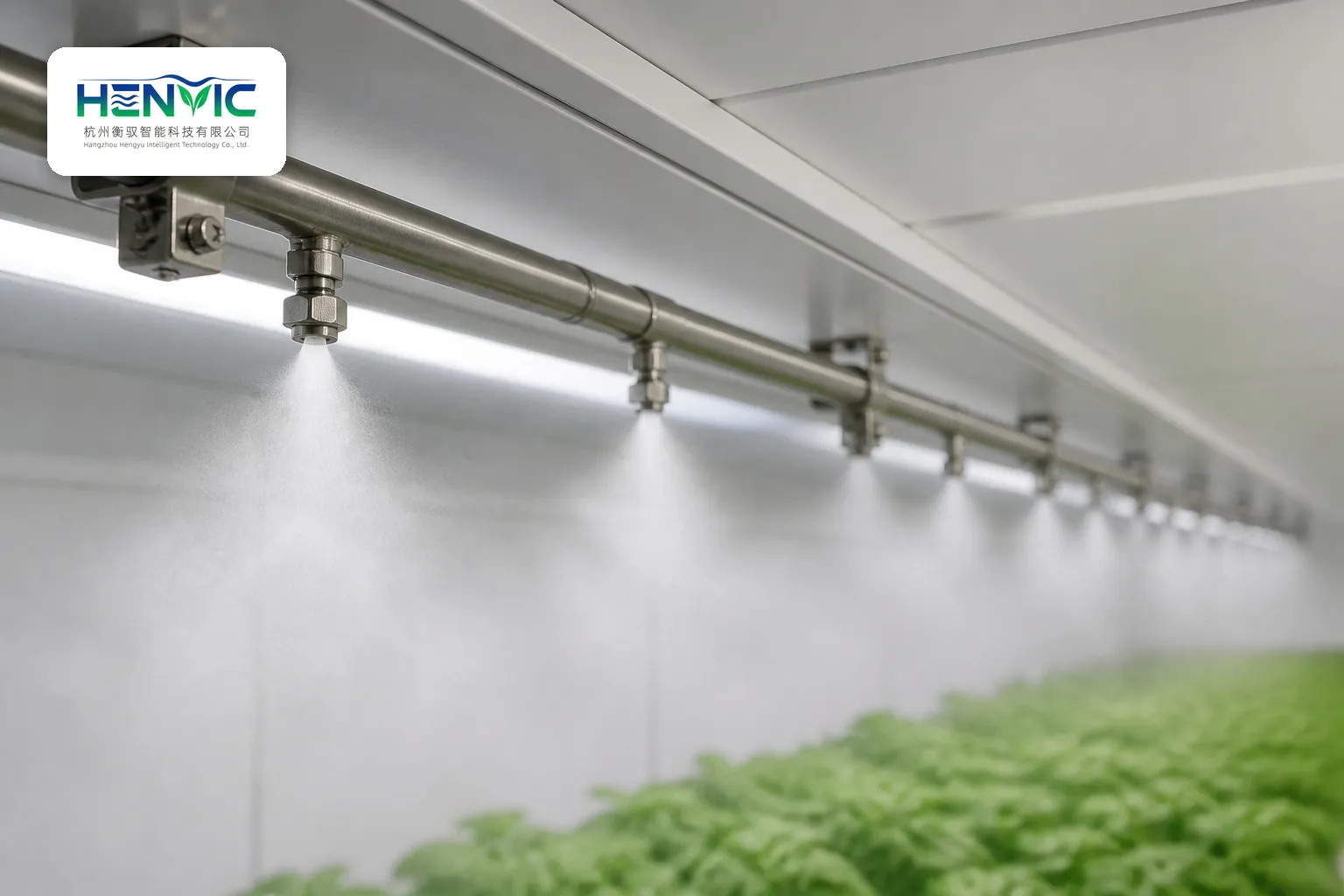

• Anti-condensation interior surfaces that prevent water damage to fruiting bodies and suppress contaminants
• Multiple independent climate zones per container for staggered spawning and harvest windows
• Full local parameter logging with remote access, so every batch is traceable and repeatable
3. Technical Specifications
项目 / Item | 参数 / Specification |
型号 / Model | HVC-M1A |

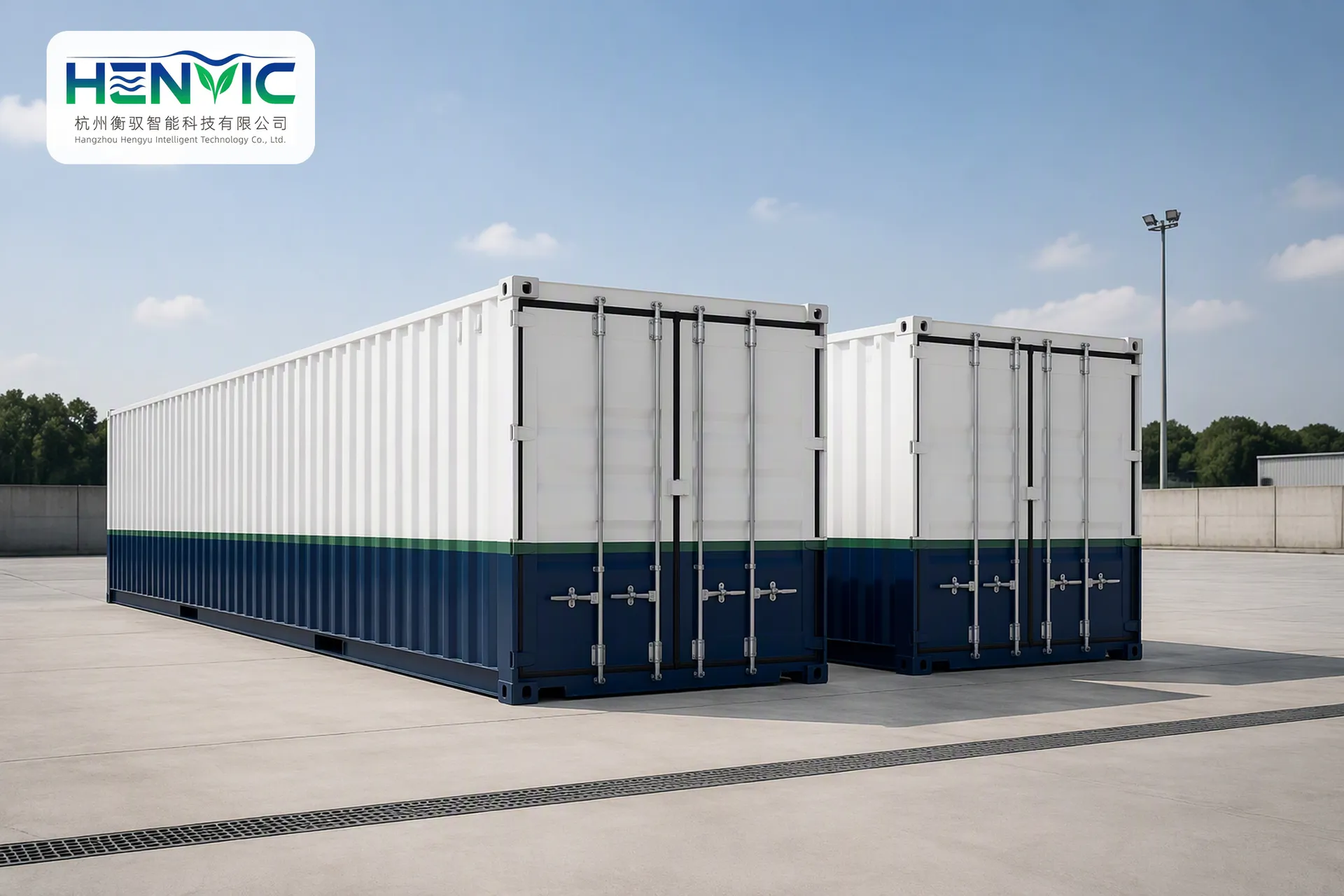

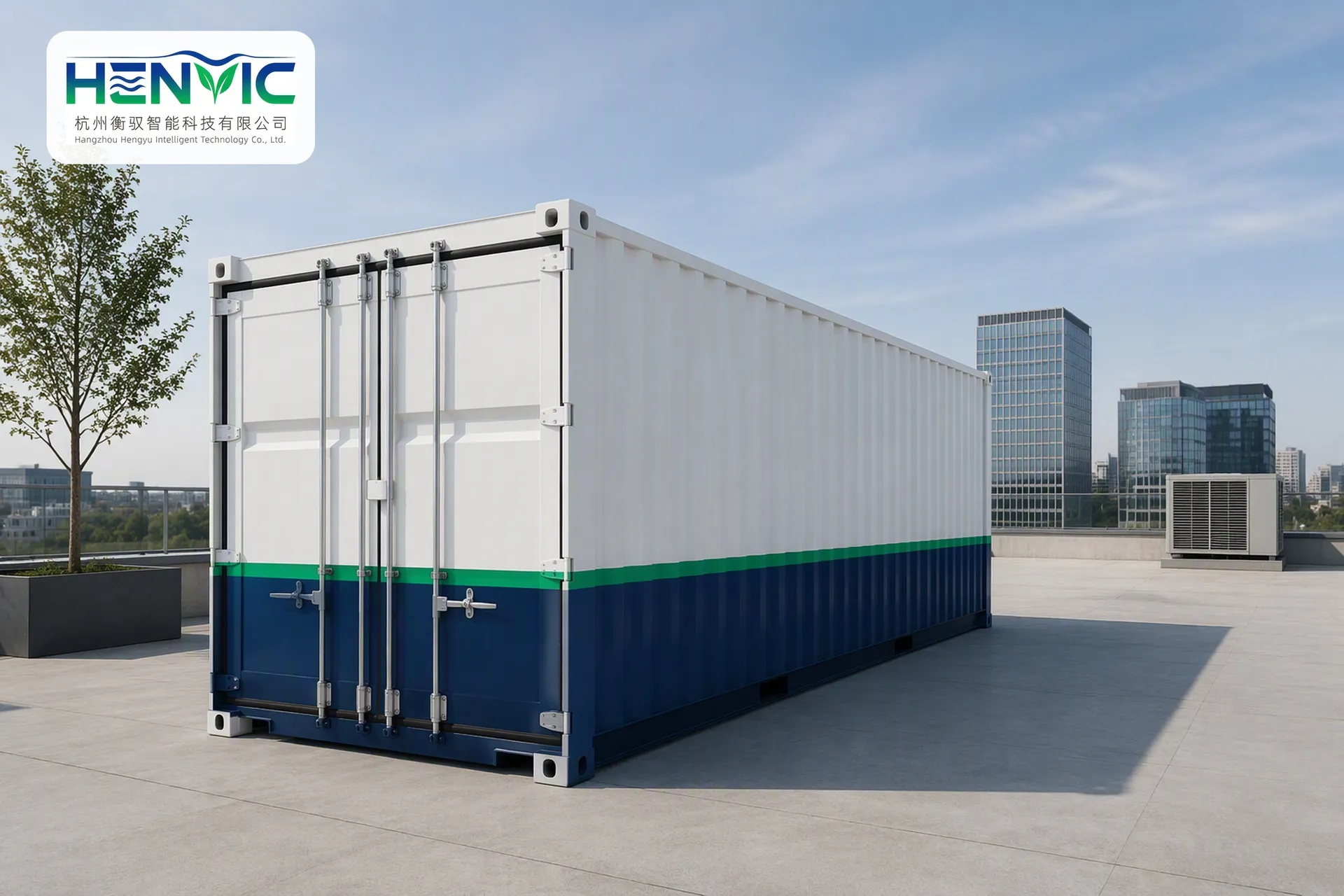

外形尺寸 / Dimensions | 6058 × 2438 × 2896 mm（20 尺标准箱） / 6058 x 2438 x 2896 mm (20 ft ISO container) |
有效栽培面积 / Effective cultivation area | 20–30 m² / 20-30 m2 |
层架配置 / Rack configuration | 3 层不锈钢出菇架，层距可调 / 3-tier stainless steel growing racks with adjustable shelf pitch |
温度控制范围 / Temperature range | 8-18 ℃ (±0.5 ℃) / 8-18 degC (+/-0.5 degC) |
相对湿度 / Relative humidity | 85-95% RH |
CO₂ 浓度 / CO₂ concentration | 600-1200 ppm |
光照 / Lighting | 0-300 lux（可调 / adjustable） |
栽培周期 / Cultivation cycle | 60–90 天（含菌丝培养与出菇） / 60-90 days including colonisation and fruiting |
装机功率 / Installed power | 6–9 kW / 6-9 kW |
电源 / Power supply | 380 V / 50 Hz 三相（可按目的国电压定制） / 380 V / 50 Hz, 3-phase (customisable to destination-country voltage) |
箱体传热系数 / Enclosure U-value | ≤0.40 W/(m²·K) / <= 0.40 W/(m2.K) |
控制系统 / Control system | PLC + 7 寸触摸屏，本地控制，预留远程接口 / PLC with 7-inch touch panel; local control with remote-ready interface |
主栽品种 / Primary species | 羊肚菌（Morchella spp.） / Morel Mushroom (Morchella spp.) |
Industrial production of premium mushrooms, cooperative demonstration bases, university and research cultivation trials, and direct supply to high-end restaurants. This is the Compact configuration; Small footprint for near-market deployment; ideal for pilot production and space-constrained sites.
7. Delivery & Installation
•Factory: the enclosure, refrigeration unit, piping and electrical systems are assembled and bench-tested in our factory, followed by a 48-hour continuous operation test, with a test record supplied with the shipment.
•Transport: the enclosure matches standard ISO container dimensions and can be shipped as ordinary container cargo under FOB, CIF or DAP terms.
•On site: our engineers or authorised partners provide positioning guidance, utility connection, commissioning and operator training, normally within 3 working days.
•Deliverables: the complete unit, printed and electronic bilingual operation manuals, a PLC programme backup, crop parameter recipes, and the factory test report.
8. After-Sales Service
•Warranty: 12 months on the complete unit from acceptance, with optional extended coverage for the core refrigeration unit and control system.
•Response: repairs acknowledged within 24 hours on business days, with a solution proposed within 72 hours for critical faults.
•Remote operations: remote diagnostics, recipe and parameter upgrades, data dashboards and energy analysis (standard on the Smart Flagship configuration, optional on the others).
•Spare parts and upgrades: long-term supply of genuine parts, filters and consumables, plus control-system and technology upgrades.
•Training and cultivation support: operator, maintenance and cultivation-process training, with continuously updated crop parameter packs.
